Name: PLC High Efficiency Plate Feeder Equipment For SMT Production Line
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSL-250SB
Price: 3000 USD
Availability: InStock

Λεπτομέρειες προϊόντων

Place of Origin: Jiangsu

Μάρκα: Yushunli

Πιστοποίηση: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000

Model Number: YSL-250SB

Όροι πληρωμής & ναυτιλίας

Minimum Order Quantity: 1 set

Τιμή: USD 3000

Packaging Details: Plywooden case

Delivery Time: 3 days to 7days

Payment Terms: T/T ,Paypal ,West Union ,L/C ,D/P .

Supply Ability: 300 sets/ month

Βρείτε την καλύτερη τιμή

Λεπτομέρειες προϊόντων

Περιγραφή του προϊόντος

Επισημαίνω:
                                                                                                                                                                                                                SMT Plate Feeder Equipment, SMT Production Plate Feeder Equipment, Plate Feeder SMT Line


Overall dimension:	L1130W845H1500±30mm	The maximum specification of PCB:	L330*W250
The lifting platform pitch is selected:	The lifting platform pitch is selected	Transmission height:	H=920±30
Power suppl:	220V50HZ

Overall dimension:	L1130W845H1500±30mm
The maximum specification of PCB:	L330*W250
The lifting platform pitch is selected:	The lifting platform pitch is selected
Transmission height:	H=920±30
Power suppl:	220V50HZ

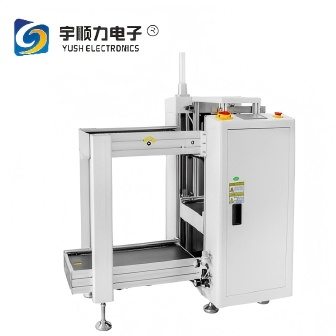

PLC High Efficiency Plate Feeder Equipment For SMT Production Line

High Quality/High efficiency Plate feeder For SMT production Line YSL-250SB 220V50HZ

Features

◎ This equipment is used for PCB board feeding operation in SMTand Al production lines.

◎ PLC control system,true color touch screen man-machine control.

◎ Auxiliary positioning braking system,accurate postioning,fast lifting speed,high production efficiency.

◎ Multple electrical distribution circuit protection,safe and reliable.

◎ Sound and light prompt alarm system,easy operation and maintenance.

◎ Compatible with SMEMA interface

◎ Standard monorail loading machine sizes are 250,330,390,460,which can be selected according to needs,and othersizes can also be customized according to customer needs.

◎ Extended product:double-track plate feeder.

Technical parameter

Overall dimension:L1130*W845*H1500±30mm

Special aluminum profile guide rail and special Qianniao plastic chain

90 W production brake motor is driven by ball screw to lift Magazine step by step

The transmission motor is a 15W constant speedplatform motor

Pneumatic clamp structure

The specification of Magazine is L355*W320*565mm

The maximum specification of PCB is L330*W250

Direction:right to left/left to right

The lifting platform pitch is selected as 10,20,30,40

Transmission height H=920±30

Huichuan PLC programmable controller control

With automatic board loading function

PLC High Efficiency Plate Feeder Equipment For SMT Production Line 0
