                                                                                                                                                                                Lead Free Wave Soldering Machine, Wave SMT Soldering Machine


Weight:	2100KG	Preheating module:	Hot Air preheating
name:	SMT Line Lead Free Wave Soldering Machine High Efficiency	keyword:	SMT Line Lead Free Wave Soldering Machine

Weight:	2100KG
Preheating module:	Hot Air preheating
name:	SMT Line Lead Free Wave Soldering Machine High Efficiency
keyword:	SMT Line Lead Free Wave Soldering Machine

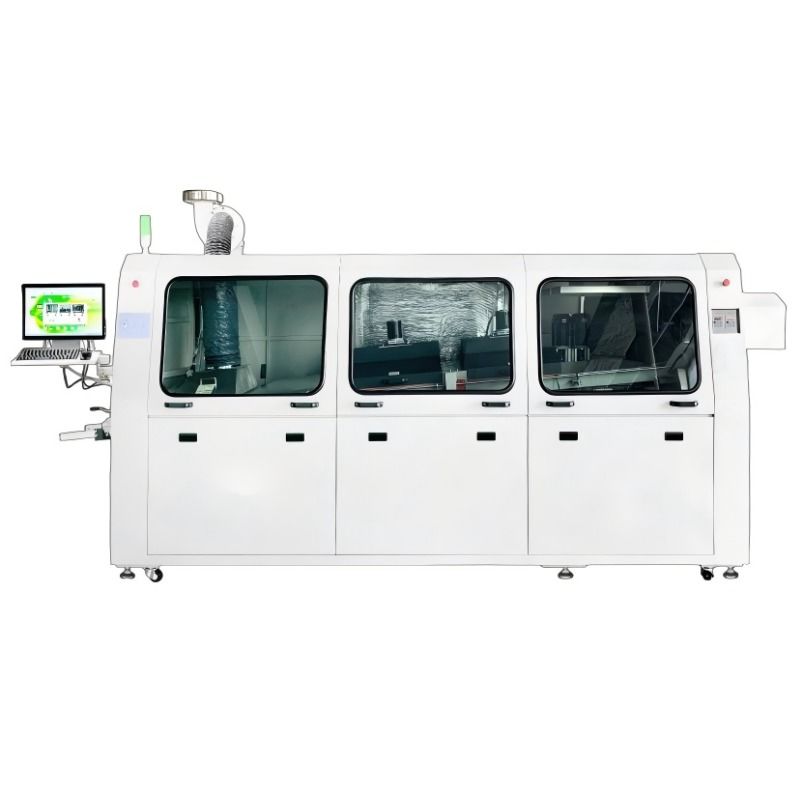

SMT Line Lead Free Wave Soldering Machine High Efficiency

Major features:

Modular, digital, humanized (modular structure is easy for production, installation and maintenance,

which can adapt to multiple varieties of small batch production.)

The four technologies:

1. The solder bath is made of cast iron plating ceramic on the surface,

improve the service life and temperature uniformity;

2. Oxidation reduction device, effectively reduce the operating cost of customers;

3. Adopt the patented new type impeller and flow channel design to improve the smoothness of;

4. Vertical spraying, good penetration, improve the flux atomization effect.

Conveying system:

1.The buffering guide adopts the profile support structure with good consistency. Easy to adjust, smooth connection. The transmission force structure part adopts steel parts wear-resistant material, long service life, stable and reliable.

2.Pure titanium chain finger,reasonable design, no block. The finger strength is good, no deformation. The finger hook end is from big to small trend, easy to remove tin, fast heating,no wetting.

3.Adjusting screw with sealed design, clean appearance, the dust and debris are not easy to enter the inside of the screw, lubricating oil is difficult to be polluted, no need often maintain.

4.Effectively prevent hazards, will not cause transportation failure and personnel injury.

Oxidation reduction device:

1.The solder pot adopts enclosure design, which can effectively control the quantity of tin slag oxidation and reduce the use cost. The distance between the two nozzles is about 30mm, which effectively controls the temperature drop between the first and second waves and ensures the welding quality.

2.Using dynamic rotating part to isolate the oxygen, eliminate the black oxide, reduce the quantity of tin slag.

3.The oxidation reduction device effectively control the flow speed of the wave , reduce the drop, eliminate the "bean residue" phenomenon.

Digitization:

Guide angle digital display

Digital display of guide rail width, easy operation (option)
