Επισημαίνω:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB depaneling machine for V-CUT, V-CUT PCB depaneling tool, YSVC-2 PCB depaneling machine


Βάρος:	150 κιλά	Δυναμικό:	220V/110V
Μέγιστο μήκος:	330 χλστ	Πίεση αέρα εργασίας:	0,5-0,7MPa
Μέγεθος:	620230400mm	Πάχος κοπής:	0,3-3,5 χιλιοστά
Ανώτατο συστατικό ύψος:	70 χλστ	Ελάχιστη απόσταση εξαρτημάτων:	0,5 mm
Τροφοδοτικό:	220VAC/110V	Μέγεθος συσκευασίας:	720mm300mm440mm
Εύρος πάχους:	0,50-3,5 χλστ	Βασικά εξαρτήματα:	Μοτέρ
Τύπος μηχανής:	Μηχανή Depaneling PCB	Μήκος σκάφους:	300mm/400mm
Τύπος μονάδας δίσκου:	Πνευματικός

Βάρος:	150 κιλά
Δυναμικό:	220V/110V
Μέγιστο μήκος:	330 χλστ
Πίεση αέρα εργασίας:	0,5-0,7MPa
Μέγεθος:	620230400mm
Πάχος κοπής:	0,3-3,5 χιλιοστά
Ανώτατο συστατικό ύψος:	70 χλστ
Ελάχιστη απόσταση εξαρτημάτων:	0,5 mm
Τροφοδοτικό:	220VAC/110V
Μέγεθος συσκευασίας:	720mm300mm440mm
Εύρος πάχους:	0,50-3,5 χλστ
Βασικά εξαρτήματα:	Μοτέρ
Τύπος μηχανής:	Μηχανή Depaneling PCB
Μήκος σκάφους:	300mm/400mm
Τύπος μονάδας δίσκου:	Πνευματικός

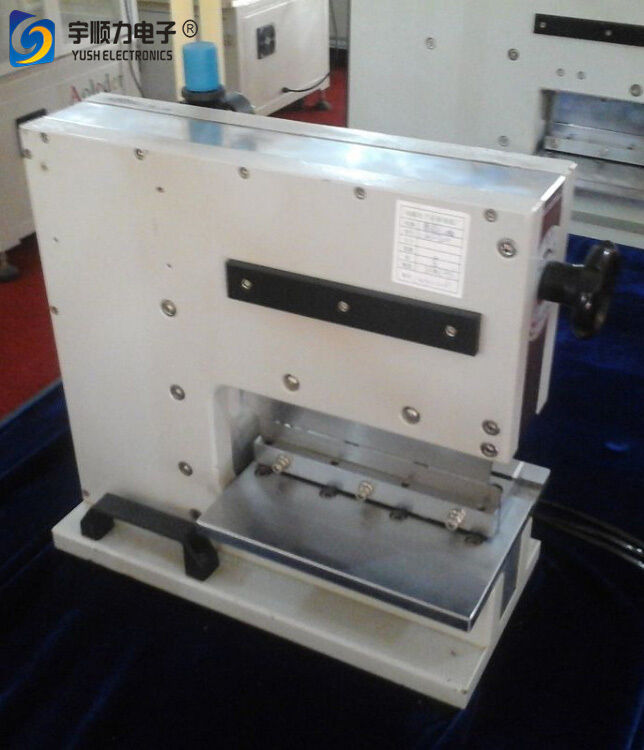

YSVC-2 Practical Good Quality PCB Depaneling Machine for V-CUT Board

YSVC-2 PCB Depaneling Machine for V-CUT Board

Professional quality PCB depaneling machine designed for efficient separation of V-CUT boards with precision and safety.

Key Advantages

Easy maintenance and operation
Safe shearing of thin PCBs down to 0.3mm thickness
Vibration-free shearing process with pneumatic drive unit

Technical Specifications

Maximum Length: 330mm (Customizable)
Cutting Thickness: 0.3-3.5mm
Voltage and Power: 110V/220V
Working Air Pressure: 0.5-0.7Mpa
Speed: Dependent on operator skill level
Dimensions: 620×230×400mm
Weight: 165kg

Advanced Features

Pneumatically driven with electromagnetic valve control
Vibration-free shearing process using pneumatic drive unit
Safe shearing of PCBs with sensitive SMD components and thin boards down to 0.3mm
Foot pedal operation for convenient shearing control
Accommodates components up to 70mm near V-groove
Minimum 0.5mm clearance between V-groove and electronic components
Easy PCB gap adjustment via front-mounted knob

Straight Knife PCB Separation Technology

Pneumatically driven straight knife separator designed to carefully separate pre-scored panel boards without bending or tension stress. The specialized knife design ensures safe separation of boards with high components placed close to edges, while wedge-shaped knives cut within the groove to safely separate boards under 1mm thickness without creating stress.

Operational Benefits

Vibration-free operation prevents damage to precise PCBs
Easy board gap adjustment via top-mounted knob with low friction design
Adjustable lower knife height with separate front/rear adjustment
No thin plates required after knife re-sharpening
Simple operation and maintenance suitable for unskilled personnel

Detailed Specifications

Parameter	Specification
Maximum Board Length	300mm / 400mm
Package Size	720mm(L)×300mm(W)×440mm(H)
Thickness Range	0.50-3.5mm
Power Supply	220VAC / 110V
Working Air Pressure	0.4-0.6Mpa
Weight	150kg
Application Scope	All V-CUT SMD PCB Boards
