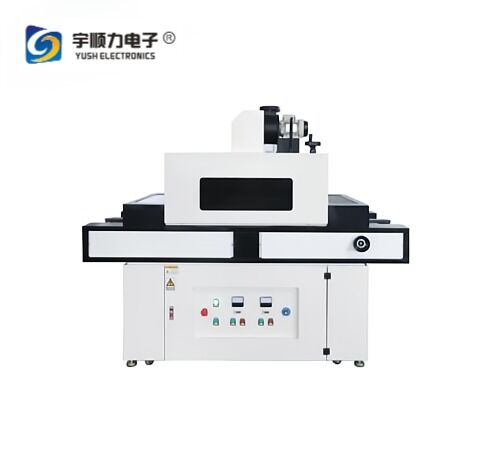

UV Curing Oven Drying Oven

Λεπτομέρειες προϊόντων

Τόπος καταγωγής: Γκουανγκντόνγκ, Κίνα

Μάρκα: YUSH

Αριθμό μοντέλου: YS-U1

Όροι πληρωμής & ναυτιλίας

Ποσότητα παραγγελίας min: 1 σετ

Τιμή: $10,000 / set

Βρείτε την καλύτερη τιμή
Επισημαίνω:

UV curing oven for PCB

,

drying oven with UV curing

,

PCB depaneling UV oven

Βάρος:
350 κιλά
σύστημα ελέγχου:
όργανο
Ταχύτητα μεταφορέα:
100~3000mm/min
Ποσότητα UV φωτός:
1 ΣΕΤ
Δύναμη φωτός υπεριώδους:
2Kw/σετ
Διάρκεια ζωής λαμπτήρα UV:
1000-1200 ώρα
Μεταφορικό υλικό:
Ζώνη πλέγματος τεφλόν
Αποτελεσματικό πλάτος:
50450mm
Χώρος ψύξης:
Ανεξάρτητος
Τύπος κινητήρα:
Εισαγόμενος
Ρύθμιση ταχύτητας:
0-2000mm/min
Τύπος ανακλαστήρα:
Ανακλαστήρας υψηλού φωτός
Υλικό αλυσίδας:
Ανοξείδωτο ατσάλι
Έλεγχος λαμπτήρων:
Διαχωρισμένος έλεγχος
Ύψος λαμπτήρα:
Ευκανόνιστος
Βάρος:
350 κιλά
σύστημα ελέγχου:
όργανο
Ταχύτητα μεταφορέα:
100~3000mm/min
Ποσότητα UV φωτός:
1 ΣΕΤ
Δύναμη φωτός υπεριώδους:
2Kw/σετ
Διάρκεια ζωής λαμπτήρα UV:
1000-1200 ώρα
Μεταφορικό υλικό:
Ζώνη πλέγματος τεφλόν
Αποτελεσματικό πλάτος:
50450mm
Χώρος ψύξης:
Ανεξάρτητος
Τύπος κινητήρα:
Εισαγόμενος
Ρύθμιση ταχύτητας:
0-2000mm/min
Τύπος ανακλαστήρα:
Ανακλαστήρας υψηλού φωτός
Υλικό αλυσίδας:
Ανοξείδωτο ατσάλι
Έλεγχος λαμπτήρων:
Διαχωρισμένος έλεγχος
Ύψος λαμπτήρα:
Ευκανόνιστος
UV Curing Oven Drying Oven
UV Curing Oven Drying Oven
Product Overview
YUSH UV oven is a cost-effective drying solution designed for adhesive applications including glue, UV photosensitive materials, inks, and epoxy resin adhesives. This equipment enables instant surface curing and drying following injection or printing processes on various materials.
Key Features
  • Advanced control system with instrument or PLC+touch screen for stable operation
  • UV lamp lifetime of 1000-1200 hours with higher energy output and stronger coating penetration
  • Abnormal lamp protection device for enhanced safety
  • Teflon conveyor belt with stepless speed regulation for stable and adjustable operation
  • Focus design with imported high-light reflector lamp shade for instant drying
  • Independent cooling area ensures low output temperature for PCBs
  • Imported motor transmission system with smooth running and adjustable speed (0-2000mm/min)
  • Stainless steel chain transportation with adjustable effective width (50-450mm)
  • In/out board detection function for monitoring board count and transportation
  • Complete UV system with transformer, reflector, lamp tube, trigger, and UV reflective devices
  • Individual UV lamp group control with adjustable height settings
UV Curing Oven Drying Oven 0
Technical Specifications
Specifications YS-U1 YS-U2 YS-U3
Transport Teflon mesh belt Stainless steel chain Stainless steel chain
Control System Instrument PLC+touch screen PLC+touch screen
Conveyor Speed 100~3000mm/min 100~3000mm/min 100~3000mm/min
UV Light Quantity 1 set 2 sets 1 set (2 sets optional)
UV Light Power 2Kw/set 3Kw/set 6Kw/set
Weight Approx. 350KG Approx. 420KG Approx. 420KG
Packaging & Shipping
UV Curing Oven Drying Oven 1
Our Services
UV Curing Oven Drying Oven 2
Company Information
YUSH Electronic Technology Co., Ltd is a professional manufacturer and trader specializing in the research, development, and production of PCB depaneling equipment, hot bar welding machines, and touch screen film sticking machines. Located in Dongguan City, Guangdong Province, China, our facility benefits from convenient transportation access. All products comply with international quality standards and are highly regarded in global markets. We welcome custom orders and look forward to establishing successful business relationships worldwide.
Frequently Asked Questions
Who are we?
Based in Jiangsu, China since 2014, we serve global markets including Eastern Europe, North America, South America, and Europe with a team of 301-500 professionals.
How do we guarantee quality?
Pre-production sampling and final inspection before shipment ensure consistent product quality.
What products do we offer?
PCB depaneling machines, PCB separators, PCB cutting machines, PCB depaneling equipment, and V-cut machines.
Why choose us?
Founded in 2004 and located in Jiangsu's manufacturing hub, we bring extensive experience and advanced production equipment to deliver professional PCB separation and electronic equipment machinery.
What services do we provide?
Accepted delivery terms: FOB, CIF, EXW, DDP, DDU, Express Delivery, DAF
Accepted payment currencies: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Accepted payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow
Languages spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, Korean, Hindi
