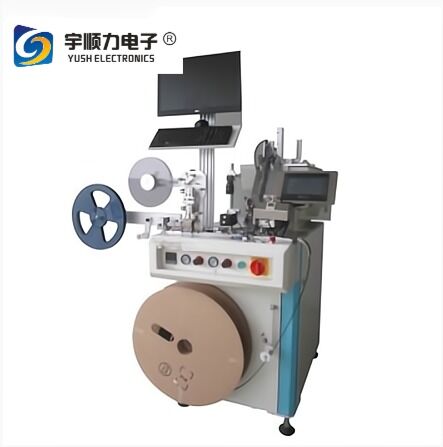

YS-12T-Automatic Tape and Reel Packaging Equipment

Λεπτομέρειες προϊόντων

Τόπος καταγωγής: Γκουανγκντόνγκ, Κίνα

Μάρκα: YUSH

Πιστοποίηση: CE

Αριθμό μοντέλου: YS-12T

Όροι πληρωμής & ναυτιλίας

Ποσότητα παραγγελίας min: 1 σετ

Τιμή: $6,000 / set

Βρείτε την καλύτερη τιμή
Επισημαίνω:

automatic tape and reel machine

,

PCB depaneling equipment with warranty

,

YS-12T tape reel packaging

Βάρος:
160 κιλά
Δυναμικό:
220 VAC
Πηγή ισχύος:
AC200V/50Hz
Πίεση αέρα εργασίας:
0,40~0,6Mpa
Ικανότητα:
3K-15K UPH
σύστημα ελέγχου:
Προγραμματιζόμενος Λογικός Ελεγκτής+Οθόνη Αφής+Σερβοκινητήρας
Έλεγχος θερμοκρασίας:
Έλεγχος θερμοκρασίας PID
Σίτιση και λήψη:
Δίσκοι από καουτσούκ και χάρτινοι δίσκοι σύμφωνα με το πρότυπο EIA-481
πλάτος της ταινίας:
12,16 χλστ
Σφραγίζοντας μορφή:
Ζεστές και κρύες σφραγίδες
Τάση εισόδου:
AC220V/50Hz
Μέγιστο ρεύμα:
10Α
Μέγεθος μηχανής:
2030*528*583(Μ*Π*Υ)
Καθαρό βάρος:
160 κιλά
Επιλεκτική διαμόρφωση:
Σύστημα ανίχνευσης εικόνας
Βάρος:
160 κιλά
Δυναμικό:
220 VAC
Πηγή ισχύος:
AC200V/50Hz
Πίεση αέρα εργασίας:
0,40~0,6Mpa
Ικανότητα:
3K-15K UPH
σύστημα ελέγχου:
Προγραμματιζόμενος Λογικός Ελεγκτής+Οθόνη Αφής+Σερβοκινητήρας
Έλεγχος θερμοκρασίας:
Έλεγχος θερμοκρασίας PID
Σίτιση και λήψη:
Δίσκοι από καουτσούκ και χάρτινοι δίσκοι σύμφωνα με το πρότυπο EIA-481
πλάτος της ταινίας:
12,16 χλστ
Σφραγίζοντας μορφή:
Ζεστές και κρύες σφραγίδες
Τάση εισόδου:
AC220V/50Hz
Μέγιστο ρεύμα:
10Α
Μέγεθος μηχανής:
2030*528*583(Μ*Π*Υ)
Καθαρό βάρος:
160 κιλά
Επιλεκτική διαμόρφωση:
Σύστημα ανίχνευσης εικόνας
YS-12T-Automatic Tape and Reel Packaging Equipment
YS-12T Automatic Tape and Reel Packaging Equipment
The YS-12T Auto Component Taping Machine provides automated packaging solutions for electronic components with precision and efficiency.
Key Features
  • Automatic feeding via feeding tube with manipulator placement
  • Designed for SOP8, SOP14, and SOP16 component packaging
  • Compatible with 12mm and 16mm wide carrier tapes
  • Optional image detection system for quality control
  • Supports both hot and cold sealing methods
Technical Specifications
Application Automatic Taping for SOP8, SOP14, SOP16 Components
Capacity 3,000 - 15,000 UPH (varies by product type)
Control System PLC + Touch Screen + Servo Motor
Temperature Control PID Temperature Control
Tape Width 12mm, 16mm
Input Voltage AC220V/50Hz
Maximum Current 10A
Working Air Pressure 0.40-0.6Mpa (Dry and Clean)
Machine Dimensions 2030×528×583mm (L×W×H)
Net Weight 160kg (including vibratory disc)
Operational Process
  • Automatic product feeding via feeding rack system
  • Precision placement from vibratory disc to carrier belt
  • Tape-weaving module completes sealing process
  • Intuitive touch screen interface for machine operation
  • Optional image detection for orientation, presence, pin verification, and batch control
